Description

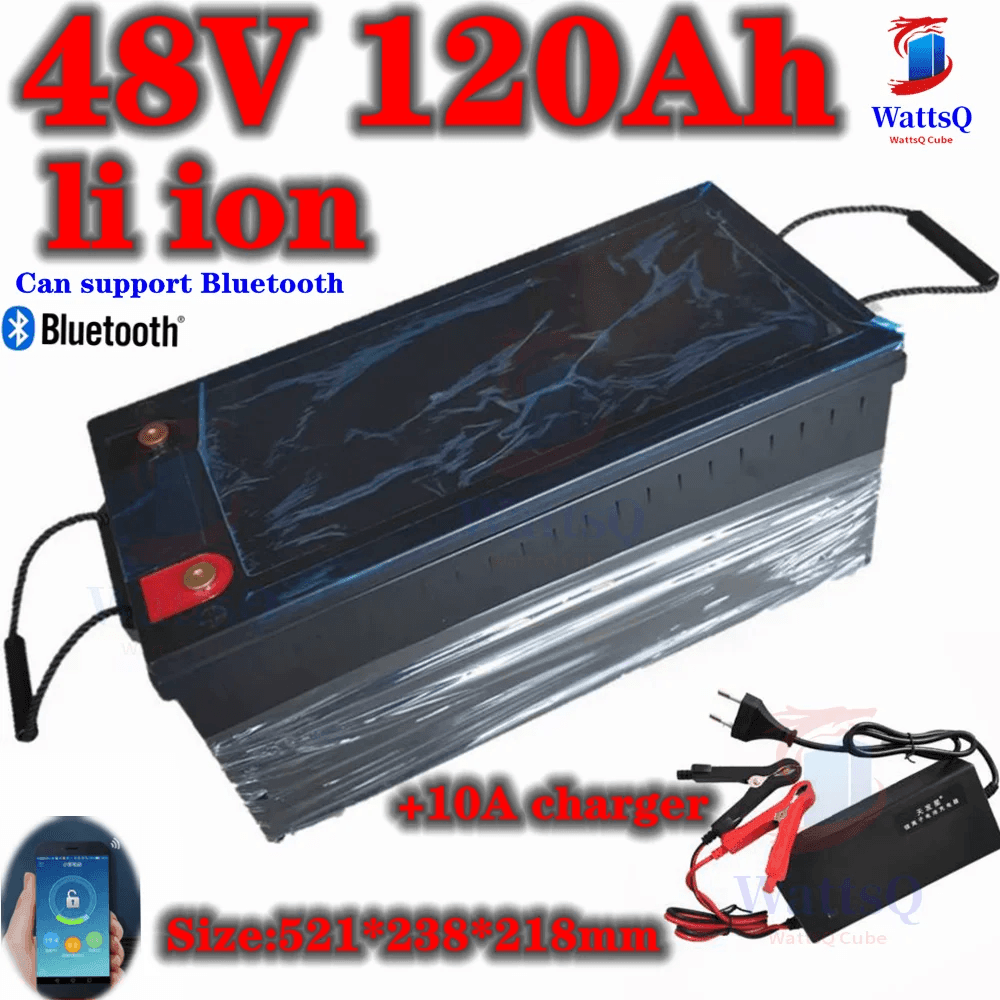

xwaterproof lithium 48V 120AH li ion battery With BMS for 5000W 7000W UPS scooter EV boat Solar inverters +10A charger
Battery Model |
48V 120Ah |
Nominal Capacity (AH) |
120Ah |
Nominal Voltage (V) |
48V |
Source Resistance (mΩ |
less than 100 |
Cell Specification |
3.7V Cell |
Cell Combination |
13-series |
Type |
Lithium |
Discharge Cutoff Voltage (V) |
32.5 +/- 1V |
Charge Cutoff Voltage (V) |
54.6V |
Rated Discharge Current (A) |
150A |
Instantaneous Maximum Discharge Current (A) |
300A |
Maximum Continuous Discharge Current (A) |
150A |
Maximum Continuous Charge Current (A) |
50A |
Charge Mode |
CC/CV |
Standard Charge Current (A) |
10A |
Charge Time under Standard Charge Current |
12 |
Fast Charge Current (A) |
50A |
Charge AC |
100~ 240V |
Charge Temperature Range |
-20 - 60 |
Discharge Temperature Range |
-20 - 60 |
Battery Size |
521*238*218mm |
Chargeing Cycles |
>1000 times |
Recommender for Motor |
3000W,4000W,8000W.. |
Battery Net Weight |
22kgs |
Battery Gross Weight |
24-25kgs |
80A BMS is suit for ≤3500W motor
100A BMS is suit for ≤4500W motor
150A BMS is suit for ≤6800W motor
200A BMS is suit for ≤9000W motor
If you have a high power motor,please contact us.We will recommend a configuration that works best for you.
1.Small size, light weight, large capacity, environmental protection, no memory effect.
2.Is the power of choice for portable electronic devices, but more delicate lithium battery.

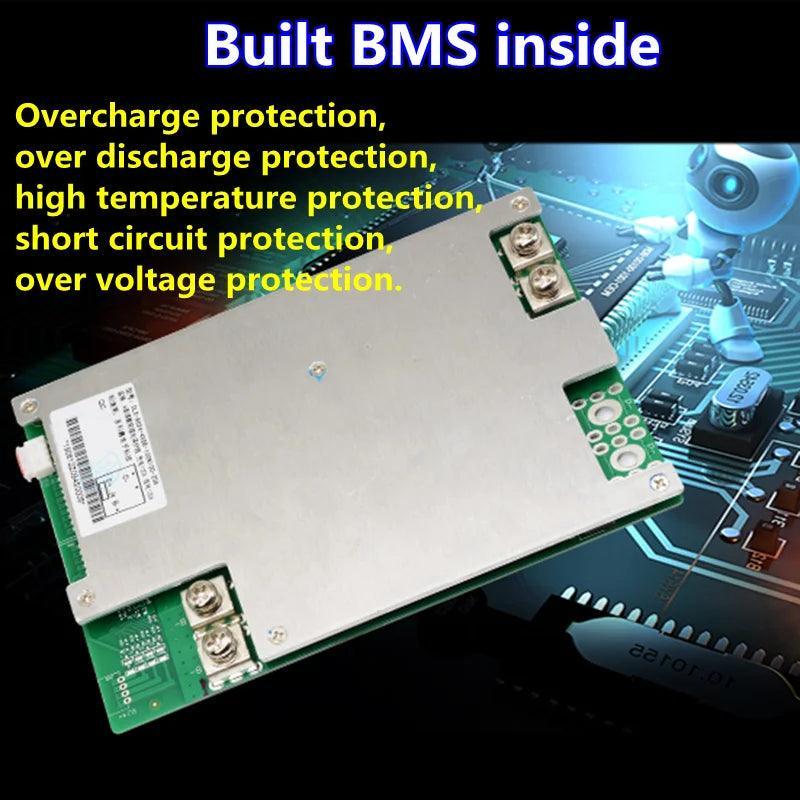

3.This battery pack is with protection board.With functions of protection from voltage, current.
1.Do not throw battery into water or make it wet
2.Keep the battery away from heat source
3.Do not throw the battery into fire or heat the battery
4.Forbid to hammer to trample the battery
5.Forbid disassembling the battery in anyway
1.Large-scale electric vehicles: electric bus, electric car, E-Tour Car,electric patrol vehicles,fishing boat.
2.Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair.
3.E-tool: electric drill, electric saw, lawn mower and so on.
4.Solar and wind power generation energy storage devices, Telecom base Station,UPS System.
5.Small medical equipment and portable equipment.
1. 1 × 48V 120Ah Li-ion battery
2. 1 × 54.6V 10A charger(If you need high current charger,please contact us!)
